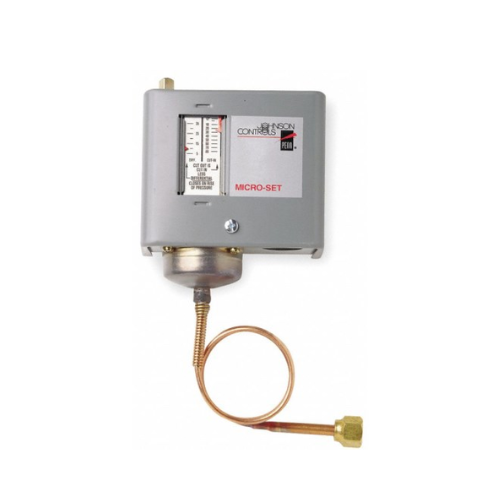

Johnson Controls P70Ab-12 Micro-set Suction Pressure Control Johnson Controls, Inc. Penn Micro-set P70 Series Model Number: P70Ab-12 Switch Action: Spst Open-low Range 12” Hg. Vac./ 80 Psig (-41 To 551 Kpa) Differential Psi(Kpa): Minimum 5 (34) Maximum 35 (241) Pressure Connection: 36 In. Cap. With 1/4 In. Flare Nut Maximum Over Pressure Psig(Kpa): 325 (2,241) Opens Low Diff. 5 To 35 Pres. Use Copper Conductors Only. Rated At Least 90°C Max. Ambient Temp. 60°C (140°F) Pilot Duty- 125Va, 120/600 Vac; 57.5Va, 120/300 Vdc Hermetic Unit- 208/240 Vac, 24 Fla Max., 144 Lra Max. Tpe50-5 Assembled In Mexico Weight: 1.140 Kg
