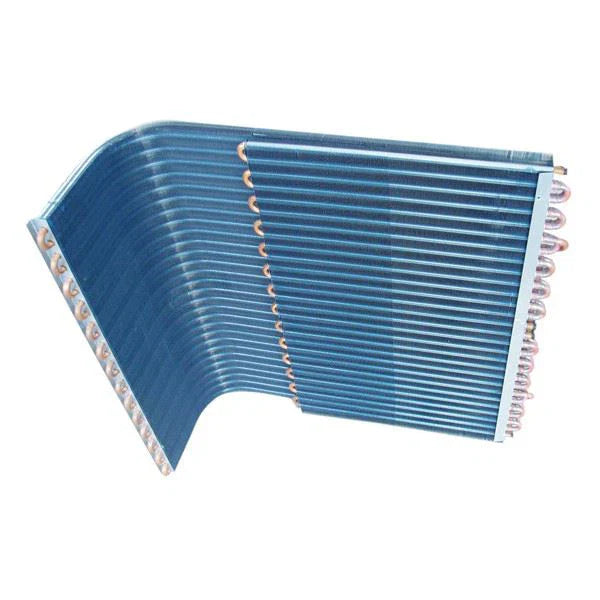

L Type Condenser

L type condenser can be used in air conditioner, coldroom, heat pump, air handling unit and other area.

Fin: flat or corrugated aluminum foils; hydrophilic or bare fin.

Tube: copper pipe @7mm, $7.94mm, 09.52mm ,q12.75mm, 415.88 of tube O.D available.

Customized service is available according tocustomer's drawings to meet end user's specified requirements. Materials of fin and tube per customer's need, it could be aluminum, copper or stainless steel

Leak test: 2.5Mpa water test

Producing process: Tube bend, Press fins, Expand tube, welding, Leak test-2.5Mpa water test, dry, inspect, pack.
