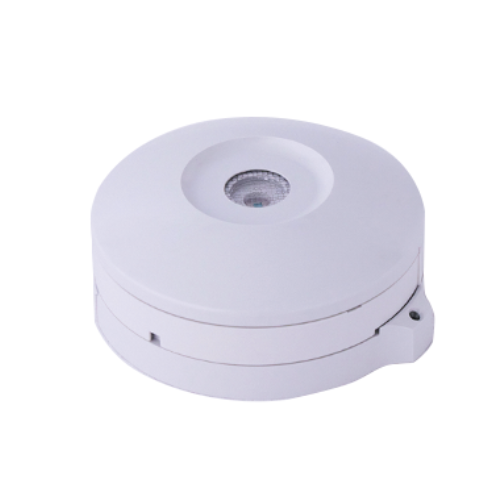

OKI NDC Nippon Dry-Chemical FD-5112A Infrared Flame Detector

NDC Nippon Dry-Chemical FD-5112A Conventional Infrared Flame Detector With 2324-OKB Detector Base

The NDC Nippon Dry-Chemical FD-5112A is a low profile conventional infrared type flame detector.

NDC Nippon Dry-Chemical FD-5112A rated voltage/current DC30V / 100mA.

FD-5112A flame detector is designed to work within the infrared spectral band. Quiescent current is 180uA (DC24V) and operation voltage range: DC20~30V.

Operation temperature range: -25degC to +70degC. Angle of reception: 70°

Key features include:

Conventional
Highly reliable technology fire detection system
Comprises a built-in alarm indicator
Conforms to the standards of Class 1 (EN54)
Proven technology
Marine approval
Protection rating: IP22 (IP44 with OFZ-9002 Junction Box available separately)
Product Code: FD-5112A & 2324-OKB
