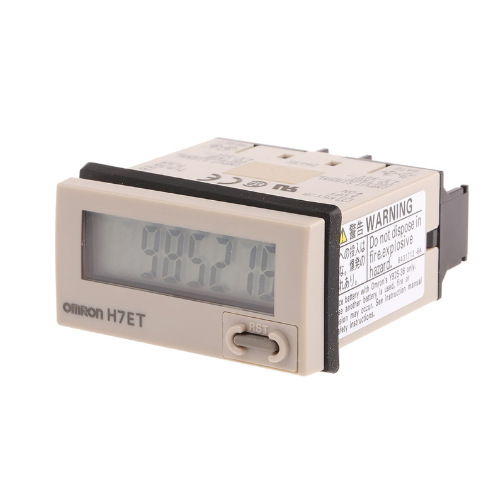

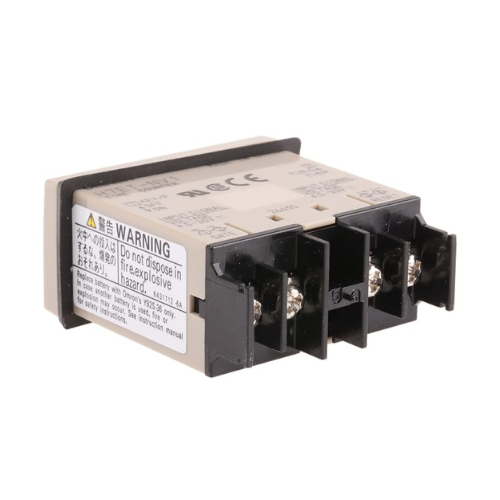

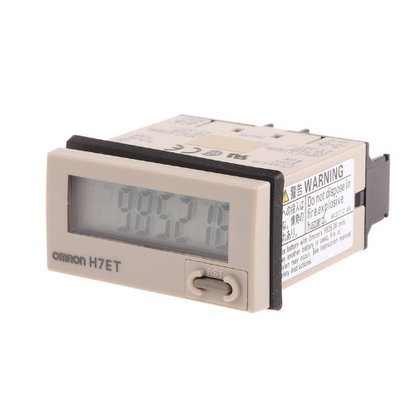

Electronic time switch for panel mounting, 24x48 mm, H7ET series
Totalizer with a large display with 8.6 mm character height and backlight options Case available in black or beige DIN case dimensions: 24x48 mm Time switches with a 7-digit LCD display Available with PNP/NPN, universal DC inputs Self-powered by an internal battery for approximately 7 years of continuous operation, replaceable Lockable switch to prevent accidental reset of the switch Two operating modes IP66 protection rating on the front panel Short case measuring only 48.5 mm in length Tamper protection Complies with EMC EN50082-2 and EN50081-1 standards for commercial, residential, and light industrial use Dimensions: Width 48 mm, Height 24 mm, Depth 48.5 mm, (opening 45x22.5 mm) mm)
Omron front panel mount 24 x 48
All devices are resettable. The panel cutout is 22 x 45 mm, and the front panel is sealed to IP65 protection and has an operating temperature range of -10 to +55°C.
