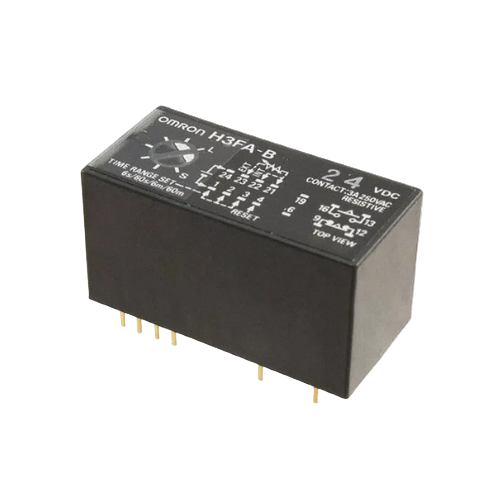

Timer for mounting on contact and non-contact output type printed circuit boards. Features · Timer for mounting on contact and non-contact output type printed circuit boards. · Two types of control outputs are provided: 3 A (at 250 V AC, with resistive load) for contact outputs (1a, 1b), and max. 150 mA at high capacity for non-contact outputs. · Multifunctionality realized by 4 time types in one unit: 1 sec. / 10 sec. / 1 min. / 10 min. (type A) or 6 sec. / 60 sec. / 6 min. / 60 min. (type B). · Time can be operated remotely through connection to an external varistor. · Fully washable. · Compact size enables mounting in 1-inch pitch racks (length × width × height: 17.75 × 36.9 × 19.5 mm). · Complies with UL/CSA.
