| Product Name |

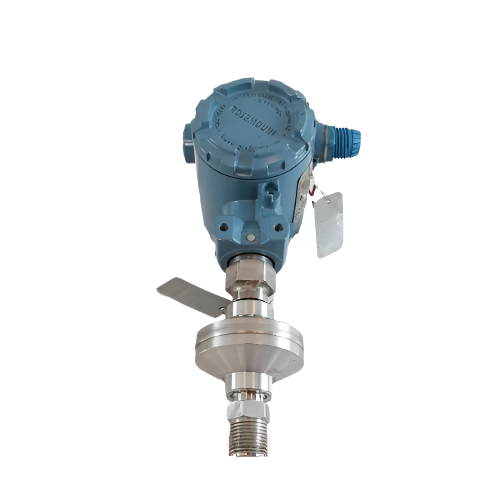

Rosemount 2088/2090 Smart Pressure Transmitter |
| Manufacturer |
Emerson Process Management Manufacturing Gmbh & Co. |
| Model Number |
2088/2090 |
| Calibration Range |
0 to 16 Bar |
| Supply Voltage |
10.5-36 Vdc |
| Overpressure Limit |
110 Bar |
| Output |
4-20 mA |
| Span |
2.76 to 55.2 Bar |
| Temperature Class |
T5 (-55°C to 40°C), T4 (-55°C to 70°C) |
| Certifications |
Eex Ia II C T5, Eex Ia II C T4 |
| ATEX Certification |
Bas00Atex1166X |
| Electrical Parameters |
Ui = 30 Vdc, Pi = 0.9 W, Ii = 200 mA, Ci = 0.012 µF |
| Weight |
2.050 Kg |
| Material |
316L Stainless Steel |
| Made In |
Singapore |
