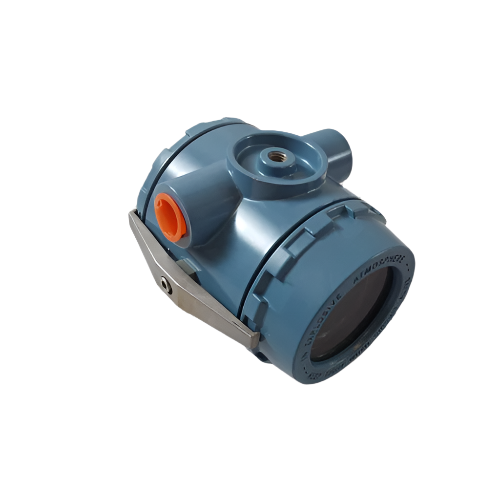

Rosemount 3144Pd2A2Kab4M5T1Q4Qt Temperature Transmitter Set With Protocol 3114P Rosemount Emerson Process Management Smart Family Hart Temperature Transmitter With Hart Protocol Model: 3144P D2A2Kab4M5T1Q4Qt Factory Cal.: Pt100_385_3-wire/0 To 100 Deg C Supply: 12.0-42.4 Vdc Output: 4-20 Ma Ip66 Ip68 Nema Type 4X Csa Enclosure Type 4X Sw Rev 1.1.1 3144-0140-0008/Ab Model 3114P 1180 Ii 1 G Bas01Atex1431X Fm12Atex0065X Ex D Iic T6...T1 Gb Power/Loop: Ui= 30Vdc Ii= 300 Madc Pi= 1.0W Ci= 5.0 Nf Li= 0 Ex Ia Iic T6 Ga(-60°C Ta 50°C) Ex Ia Iic T5 Ga(-60°C Ta 75°C) Sensor: Uo= 13.6V Io= 56 Ma Po= 190 Mw Ci= 78 Nf Li= 0 Cl I, Gp A,B,C,D; Cl Ii, Gp E,F,G; Cl Iii Vmax= 30.0Vdc Amb Temp: (-50°C Ta 85°C) 3144-0167-0002/An Kema02Atex2291U 1180 Ii 2G Ex De Iic Iecex Kem06.0012 00444-0282 1/2-14 Npt Kema07Atex0074 1/2 Npt Ex De Iic Ncc 5902/09 Iecexkem07.0025 Iec 61508 03151-3306-0002 Rev. Aa Assembled In Singapore Made In Singapore Made In Malaysia Weight: 2.580 Kg
