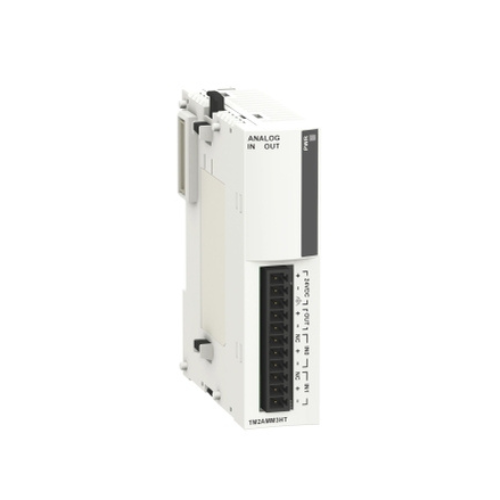

Schneider electric twdamm3ht analog i/o module schneider electric analog in out twido twdamm3ht expansion analog 2 in 1 out 0-10v 4-20ma power (internal):5vdc 50ma (external): 24vdc 40ma input: 4-20ma/0-10v output: 4-20ma/0-10v use min 60ºc wire copper cndct. only terminal torque: 0.22-0.25 n.m max 55ºc temperature code: t4a class 1 div. 2 groups abcd pv: 03 rl: 06 sv: 1.2 made in japan weight: 90 gm
